Model 125 - Cathodic Protection Monitoring Station

Monitors cathodic protection in all natural waters.

  • Model 125A: For Aluminum Hulls, Aluminum Structures & Components
  • Model 125S: For Steel Hulls, Steel or Iron Structures
  • Model 125B: For Fiberglass or Wood Hulls w/Bronze & Stainless Steel Components & Fittings

Allows potential corrosion problems to be spotted at a glance.

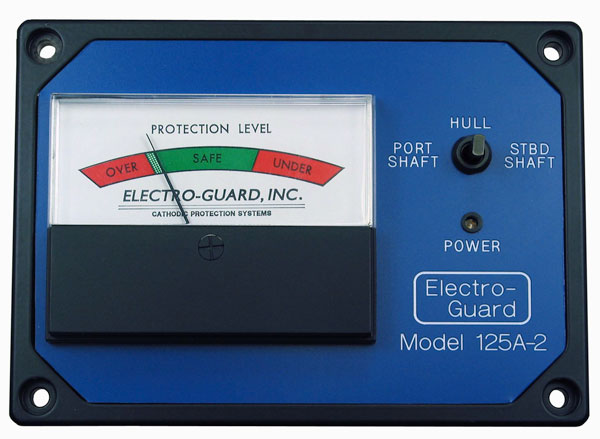

Model 125 Cathodic Protection Monitoring StationThese cathodic protection monitoring stations provide easy to read and interpret indications of protection level.

  • Easy to read analog panel meter display
  • Rugged, stable reference electrode
  • Easy to install
  • Accurate readings in all natural waters - seawater, brackish & fresh
  • Meter reads continuously - no push to read buttons
  • The -1 & -2 versions have a switch in the panel that allows for independent protection level readings of the shaft & propeller assembly or assemblies

125 Installation Kit Includes:

Monitoring Station: An aluminum panel w/color coded display that indicates the level of protection being provided by the cathodic protection system (either sacrificial anodes or impressed current) - the panel is 5 ¼" long by 3 ¾" high by 2 ¼" deep.

Reference Cell: Zinc - 2 ¾"L x 1 ¾"W, ½" thru-hull penetration

Power Requirement: The 125 monitoring station operates on 12 to 24 volts DC

Accessories and Spare Items:
