Model 208 - Automatic Control with Monitoring

Automatic Control Maintains Constant Protection Level - for vessels up to 45 feet LOA.

These controlled sacrificial anode systems provide complete protection against galvanic corrosion on fiberglass and wood hulled boats. Monitoring allows a visual indication of system performance and early warning of stray corrosion currents from electrical faults. Caustic attack to wood at protected fittings is prevented.

Features of the system include.Model 125 Cathodic Protection Monitoring Station

  • Easy to read analog panel meter display
  • Rugged, accurate, stable reference electrode
  • Meter reads continuously, no push to read buttons
  • Momentary switch for isolated shaft and prop protection level sensing
  • Easy to install

208 Installation Kit Includes:

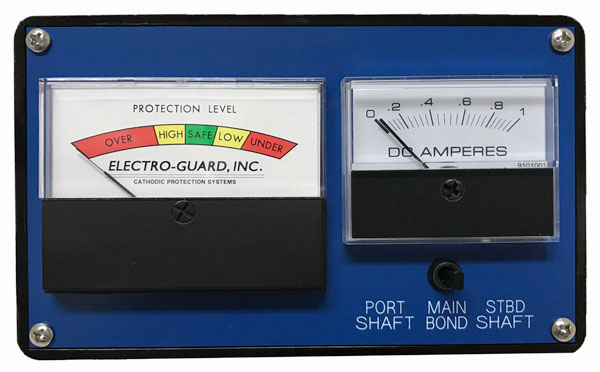

Controller - with color coded display, should be mounted in highly visible location - 6 1/4"L x 3 3/4"H x 2 3/8"D

Anode Studs - Two 3/8" x 5"L insulated brass anode mounting studs with hardware

Reference Cell - Should be installed under hull near a protected fitting - 8"L x 2 3/4"W x 1"D (outside hull) - two mounting studs

Sense Brushes - 3/4"W x 13 5/8"L shaft wiper assembly(s) - for sensing shaft and prop protection level

Accessories and Spare Items:
