Model 620

  • Model 620A: For Small Aluminum Boats, Large Outboards, Stern Drives and Sail Drives
  • Model 620S: For Steel Hulls, Steel or Iron Structures
  • Model 620B: For Fiberglass and Wood Hulls
Model 620 impressed current cathodic protection system.

This impressed current cathodic protection system provides totally automatic protection and STOPS CORROSION IN ITS TRACKS!

Model 620A

  • No more zinc anodes to replace
  • Permanent anode - never needs replacing
  • Totally automatic - no adjusting
  • Easy to read LED protection level display

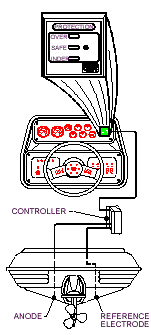

620 Installation Kit Includes:

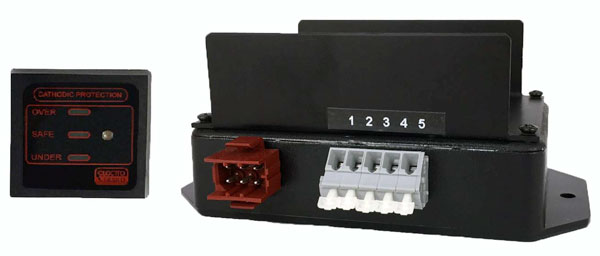

Monitor - Two color LED display is 1 1/2" square - fits 1" diameter cutout in instrument panel - comes with 5' multi-conductor signal cable with connector that plugs into controller

Controller - Remotely mounted near the instrument panel - 5 1/8"L x 2 7/8"W x 2"H

Anode - Can be installed on transom or under the hull - comes with 20' of AWG 14 wire attached - 3 1/2"L x 3"W

Reference Cell - Can be installed on transom or under hull - 2"L x 1 1/2"W

Accessories and Spare Items:
